Fixed Vacuum CapacitorsFS series: up to 50 Arms (13.56 MHz)
Small power applications, ultra- compact design and various capacitance
Product Features
By using stainless steel material for the electrodes and by positioning with high accuracy using a center pin, the FS type became a model of compact design with higher withstand voltage.
The conduction performance is inferior to that of the copper electrode type. However, since its heat loss is lower than that of ceramic capacitor, heat dissipation by the energization is small.
Please refer to the catalog for cautions in handling and operation and for characteristics details.
- Stainless steel electrodes adopted
- Center pin positioning structure

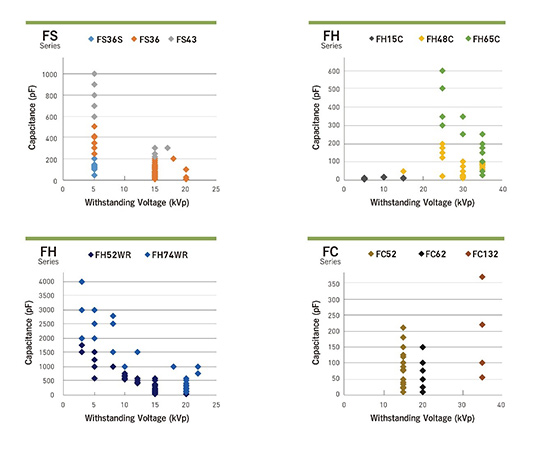

Specifications
Please refer to the PDF (data sheet) attached to each model for the product details.
| Type | Part Number | Capacitance (pF) | Voltage (kVp) | Max. Current @13.56 MHz | Diameter | Data sheet | |
|---|---|---|---|---|---|---|---|
| RF Working | Peak Test | ||||||
| sort | sort | sort | sort | sort | sort | sort | |

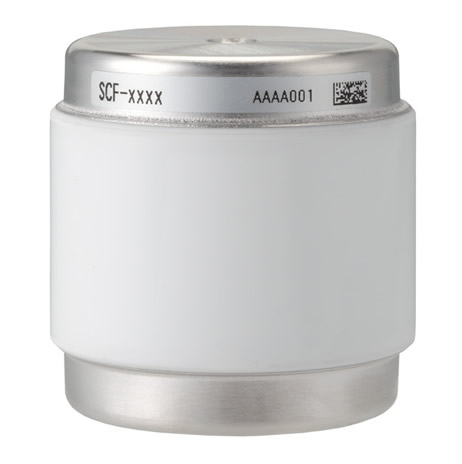

| FS43 | SCF-510 | 1000 | 3 | 5 | 50 | 43 | |
| FS43 | SCF-59 | 900 | 3 | 5 | 50 | 43 | |
| FS43 | SCF-58 | 800 | 3 | 5 | 50 | 43 | |
| FS43 | SCF-57 | 700 | 3 | 5 | 50 | 43 | |
| FS43 | SCF-56 | 600 | 3 | 5 | 50 | 43 | |
| FS43 | SCF-173 | 300 | 10.2 | 17 | 50 | 43 | |
| FS43 | SCF-153 | 300 | 9 | 15 | 50 | 43 | |
| FS43 | SCF-152.5 | 250 | 9 | 15 | 50 | 43 | |
| FS43 | SCF-152.2 | 220 | 9 | 15 | 50 | 43 | |

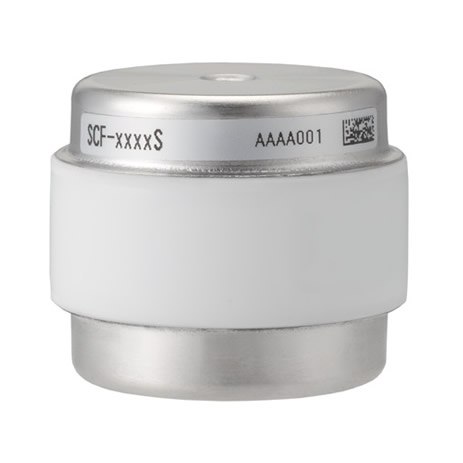

| FS36S | SCF-52S | 200 | 3 | 5 | 36 | 36 | |
| FS36S | SCF-51.5S | 150 | 3 | 5 | 27 | 36 | |
| FS36S | SCF-51.4S | 140 | 3 | 5 | 25 | 36 | |
| FS36 | SCF-51.3S | 130 | 3 | 5 | 23 | 36 | |
| FS36S | SCF-51.2S | 120 | 3 | 5 | 21 | 36 | |
| FS36S | SCF-51.1S | 110 | 3 | 5 | 19 | 36 | |
| FS36S | SCF-51S | 100 | 3 | 5 | 18 | 36 | |

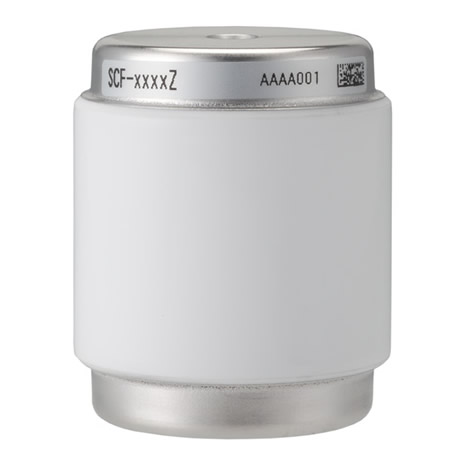

| FS36 | SCF-105Z | 500 | 6 | 10 | 50 | 36 | |
| FS36 | SCF-55Z | 500 | 3 | 5 | 50 | 36 | |
| FS36 | SCF-104Z | 400 | 6 | 10 | 50 | 36 | |
| FS36 | SCF-54Z | 400 | 3 | 5 | 50 | 36 | |
| FS36 | SCF-103.5Z | 350 | 6 | 10 | 50 | 36 | |
| FS36 | SCF-53.5Z | 350 | 3 | 5 | 50 | 36 | |
| FS36 | SCF-103Z | 300 | 6 | 10 | 50 | 36 | |
| FS36 | SCF-53Z | 300 | 3 | 5 | 50 | 36 | |
| FS36 | SCF-102.5Z | 250 | 6 | 10 | 50 | 36 | |
| FS36 | SCF-52.5Z | 250 | 3 | 5 | 45 | 36 | |
| FS36 | SCF-152Z | 200 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.8Z | 180 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.5Z | 150 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.4Z | 140 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.3Z | 130 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.2Z | 120 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.15Z | 115 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151.1Z | 110 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-151Z | 100 | 9 | 15 | 50 | 36 | |
| FS36 | SCF-150.9Z | 90 | 9 | 15 | 48 | 36 | |
| FS36 | SCF-150.84Z | 84 | 9 | 15 | 45 | 36 | |
| FS36 | SCF-150.8Z | 80 | 9 | 15 | 43 | 36 | |
| FS36 | SCF-150.75Z | 75 | 9 | 15 | 40 | 36 | |
| FS36 | SCF-200.6Z | 60 | 12 | 20 | 43 | 36 | |
| FS36 | SCF-150.6Z | 60 | 9 | 15 | 32 | 36 | |
| FS36 | SCF-150.5Z | 50 | 9 | 15 | 27 | 36 | |
| FS36 | SCF-150.4Z | 40 | 9 | 15 | 21 | 36 | |
| FS36 | SCF-150.33Z | 33 | 9 | 15 | 17 | 36 | |
| FS36 | SCF-200.3Z | 30 | 12 | 20 | 21 | 36 | |
| FS36 | SCF-150.25Z | 25 | 9 | 15 | 13 | 36 | |
| FS36 | SCF-150.2Z | 20 | 9 | 15 | 10 | 36 | |
| FS36 | SCF-200.1Z | 10 | 12 | 20 | 7 | 36 | |
| FS36 | SCF-150.1Z | 10 | 9 | 15 | 5 | 36 | |
| FH74WR | SCF-340H74WR | 4000 | 1.8 | 3 | 121 | 74 | |
| FH74WR | SCF-530H74WR | 3000 | 3 | 5 | 121 | 74 | |
| FH74WR | SCF-520H74WR | 2000 | 3 | 5 | 121 | 74 | |
| FH74WR | SCF-1010H74WR | 1000 | 6 | 10 | 140 | 74 | |
| FH74WR | SCF-157.5H74WR | 750 | 9 | 15 | 140 | 74 | |
| FH74WR | SCF-205H74WR | 500 | 12 | 20 | 140 | 74 | |
| FH65C | SCF-253.5H65C | 350 | 15 | 25 | 172 | 65 | |
| FH65C | SCF-253H65C | 300 | 15 | 25 | 172 | 65 | |
| FH65C | SCF-352.5H65C | 250 | 21 | 35 | 172 | 65 | |
| FH65C | SCF-352H65C | 200 | 21 | 35 | 172 | 65 | |
| FH65C | SCF-351.75H65C | 175 | 21 | 35 | 172 | 65 | |
| FH65C | SCF-351.5H65C | 150 | 21 | 35 | 172 | 65 | |
| FH65C | SCF-351H65C | 100 | 21 | 35 | 126 | 65 | |
| FH65C | SCF-350.5H65C | 50 | 21 | 35 | 63 | 65 | |
| FH65C | SCF-350.25H65C | 25 | 21 | 35 | 31 | 65 | |
| FH52WR | SCF-320H52WR | 2000 | 1.8 | 3 | 130 | 52.4 | |
| FH52WR | SCF-317.5H52WR | 1750 | 1.8 | 3 | 130 | 52.4 | |
| FH52WR | SCF-515H52WR | 1500 | 3 | 5 | 130 | 52.4 | |
| FH52WR | SCF-315H52WR | 1500 | 1.8 | 3 | 130 | 52.4 | |
| FH52WR | SCF-512.5H52WR | 1250 | 3 | 5 | 130 | 52.4 | |
| FH52WR | SCF-810H52WR | 1000 | 4.8 | 8 | 130 | 52.4 | |
| FH52WR | SCF-510H52WR | 1000 | 3 | 5 | 130 | 52.4 | |
| FH52WR | SCF-107.5H52WR | 750 | 6 | 10 | 130 | 52.4 | |
| FH52WR | SCF-107H52WR | 700 | 6 | 10 | 130 | 52.4 | |
| FH52WR | SCF-106.5H52WR | 650 | 6 | 10 | 130 | 52.4 | |
| FH52WR | SCF-126H52WR | 600 | 7.2 | 12 | 130 | 52.4 | |
| FH52WR | SCF-106H52WR | 600 | 6 | 10 | 130 | 52.4 | |
| FH52WR | SCF-56H52WR | 600 | 3 | 5 | 108 | 52.4 | |
| FH52WR | SCF-105.5H52WR | 550 | 6 | 10 | 130 | 52.4 | |
| FH52WR | SCF-155H52WR | 500 | 9 | 15 | 130 | 52.4 | |
| FH52WR | SCF-125H52WR | 500 | 7,2 | 12 | 130 | 52.4 | |
| FH52WR | SCF-124.5H52WR | 450 | 7.2 | 12 | 130 | 52.4 | |
| FH52WR | SCF-124H52WR | 400 | 7.2 | 12 | 130 | 52.4 | |
| FH52WR | SCF-153.7H52WR | 370 | 9 | 15 | 130 | 52.4 | |
| FH52WR | SCF-153.5H52WR | 350 | 9 | 15 | 130 | 52.4 | |
| FH52WR | SCF-153H52WR | 300 | 9 | 15 | 130 | 52.4 | |
| FH52WR | SCF-152.5H52WR | 250 | 9 | 15 | 130 | 52.4 | |
| FH52WR | SCF-152.1H52WR | 210 | 9 | 15 | 113 | 52.4 | |
| FH52WR | SCF-202H52WR | 200 | 12 | 20 | 130 | 52.4 | |
| FH52WR | SCF-152H52WR | 200 | 9 | 15 | 108 | 52.4 | |
| FH52WR | SCF-151.5H52WR | 150 | 9 | 15 | 81 | 52.4 | |
| FH52WR | SCF-201H52WR | 100 | 12 | 20 | 72 | 52.4 | |
| FH52WR | SCF-151H52WR | 100 | 9 | 15 | 54 | 52.4 | |
| FH52WR | SCF-200.62HA52WR | 62 | 12 | 20 | 44 | 52.4 | |
| FH52WR | SCF-200.56HA52WR | 56 | 12 | 20 | 40 | 52.4 | |
| FH48C | SCF-252H48C | 200 | 15 | 25 | 145 | 48 | |
| FH48C | SCF-251.75H48C | 175 | 15 | 25 | 145 | 48 | |
| FH48C | SCF-301.5H48C | 150 | 18 | 30 | 145 | 48 | |
| FH48C | SCF-251.5H48C | 150 | 15 | 25 | 135 | 48 | |
| FH48C | SCF-251.25H48C | 125 | 15 | 25 | 112 | 48 | |
| FH48C | SCF-351H48C | 100 | 21 | 35 | 126 | 48 | |
| FH48C | SCF-301H48C | 100 | 18 | 30 | 108 | 48 | |
| FH48C | SCF-350.9H48C | 90 | 21 | 35 | 113 | 48 | |
| FH48C | SCF-300.75H48C | 75 | 18 | 30 | 81 | 48 | |
| FH48C | SCF-350.5H48C | 50 | 21 | 35 | 63 | 48 | |
| FH48C | SCF-300.5H48C | 50 | 18 | 30 | 54 | 48 | |
| FH48C | SCF-300.25H48C | 25 | 18 | 30 | 27 | 48 | |
| FH48C | SCF-300.2H48C | 20 | 18 | 30 | 21 | 48 | |
| FH48C | SCF-300.1H48C | 10 | 18 | 30 | 10 | 48 | |
| FC62 | SCF-201.5C | 150 | 12 | 20 | 100 | 62.4 | |
| FC62 | SCF-201C | 100 | 12 | 20 | 72 | 62.4 | |
| FC62 | SCF-200.75C | 75 | 12 | 20 | 54 | 62.4 | |
| FC62 | SCF-200.5C | 50 | 12 | 20 | 36 | 62.4 | |
| FC62 | SCF-200.1C | 9 | 12 | 20 | 6 | 62.4 | |
| FC52A | SCF-152.1CA | 210 | 9 | 15 | 80 | 52.4 | |
| FC52A | SCF-151.8CA | 180 | 9 | 15 | 80 | 52.4 | |
| FC52A | SCF-151.5CA | 150 | 9 | 15 | 80 | 52.4 | |
| FC52A | SCF-151.2CA | 120 | 9 | 15 | 65 | 52.4 | |
| FC52A | SCF-151CA | 100 | 9 | 15 | 54 | 52.4 | |
| FC52A | SCF-150.9CA | 90 | 9 | 15 | 48 | 52.4 | |
| FC52A | SCF-150.8CA | 80 | 9 | 15 | 43 | 52.4 | |
| FC52A | SCF-150.5CA | 50 | 9 | 15 | 27 | 52.4 | |
| FC52 | SCF-152C | 200 | 9 | 15 | 108 | 52.4 | |
| FC52 | SCF-151.5C | 150 | 9 | 15 | 81 | 52.4 | |
| FC52 | SCF-151C | 100 | 9 | 15 | 54 | 52.4 | |
| FC52 | SCF-150.5C | 50 | 9 | 15 | 27 | 52.4 | |
