Variable Vacuum CapacitorsVP series, up to 400 Arms (13.56 MHz)
Large power supply-compliant, high current, low torque, water cooled bearing, and long operational life
Product Features

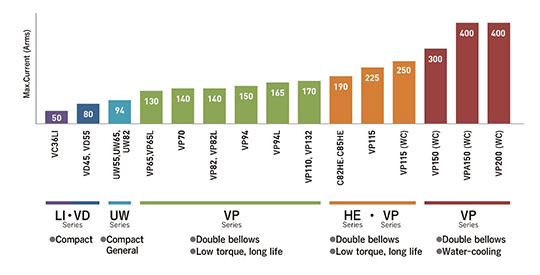

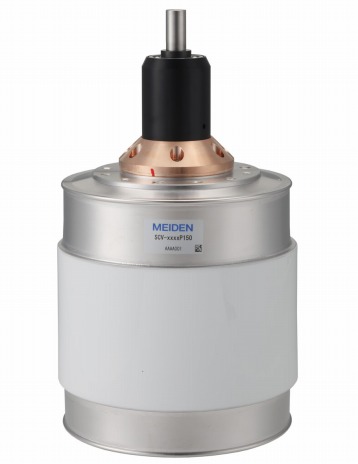

The VP150 series adopted the cooling structures taking advantage of the feature of our own unique design bidirectional bellows structure. In so doing, we realized air cooling 230 Arms and water cooling 300 Arms. This model can be used for the RF applications of the power capacity 50 kW class.
- We realized the long operational life by diamond like carbon (DLC) coating.
Please refer to the catalog for any caution in handling and operating and explanations of characteristics.
- We realized high power by new water cooling structure and large diameter copper alloy double bellows structure
- We realized the low torque.
- Using stronger screw for variable capacitance.
Specifications
Please refer to the PDF (data sheet) attached to each model for the product detail.
Capacitance Min.
Capacitance Max.
Voltage
(Peak Test)
(Peak Test)
Max. Current
@13.56MHz
@13.56MHz
| Type | Part Number | Capacitance (pF) | Voltage (kVp) | Max. Current @13.56 MHz | Diameter | Data sheet | ||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | RF Working | Peak Test | |||||
| sort | sort | sort | sort | sort | sort | sort | sort | |
| VP110 | SCV-540P110W | 45 | 4000 | 3 | 5 | 170 | 110 | |
| TC48 | SCT-210.4H48C | 35 | 45 | 12.6 | 21 | 34 | 48 | |
| TC48 | SCT-300.3H48C | 25 | 35 | 18 | 30 | 37 | 48 | |
| TC48 | SCT-300.2H48C | 8 | 20 | 18 | 30 | 21 | 48 | |
| UW55 | SCV-415H55UW-C | 150 | 1500 | 2.4 | 4 | 94 | 55 | |
| UW55 | SCV-510H55UW-C | 35 | 1000 | 3 | 5 | 94 | 55 | |
| UW55 | SCV-310H55UW-C | 35 | 1000 | 1.8 | 3 | 94 | 55 | |
| UW55 | SCV-85H55UW-C | 35 | 500 | 4.8 | 8 | 94 | 55 | |
| UW55 | SCV-55FH55UW-C | 7 | 500 | 3 | 5 | 90 | 55 | |
| UW55 | SCV-83.5FH55UW-C | 7 | 350 | 4.8 | 8 | 94 | 55 | |
| UW55 | SCV-152.5H55UW-C | 25 | 250 | 9 | 15 | 94 | 55 | |
| UW55 | SCV-151.5FH55UW-C | 7 | 150 | 9 | 15 | 81 | 55 | |
| UW55 | SCV-151H55UW-C | 10 | 100 | 9 | 15 | 54 | 55 | |
| UW65 | SCV-320H65UW-C | 200 | 2000 | 1.8 | 3 | 94 | 65 | |
| UW65 | SCV-515H65UW-C | 150 | 1500 | 3 | 5 | 94 | 65 | |
| UW65 | SCV-415H65UW-C | 150 | 1500 | 2.4 | 4 | 94 | 65 | |
| UW65 | SCV-1010H65UW-C | 100 | 1000 | 6 | 10 | 94 | 65 | |
| UW65 | SCV-810H65UW-C | 100 | 1000 | 4.8 | 8 | 94 | 65 | |
| UW65 | SCV-155H65UW-C | 50 | 500 | 9 | 15 | 94 | 65 | |
| UW65 | SCV-125H65UW-C | 50 | 500 | 7.2 | 12 | 94 | 65 | |
| UW82 | SCV-815H82UW-C | 150 | 1500 | 4.8 | 8 | 94 | 82 | |
| UW82 | SCV-1014H82UW-C | 140 | 1400 | 6 | 10 | 94 | 82 | |
| UW82 | SCV-158FH82UW-C | 50 | 800 | 9 | 15 | 94 | 82 | |
| UW55 | SCV-150.75HA55UW-C | 5 | 75 | 9 | 15 | 40 | 55 | |
| UW55 | SCV-150.6HA55UW-C | 3 | 60 | 9 | 15 | 32 | 55 | |
| VC-82HE | SCV-103.3C82HEW-AADG-J | 30 | 330 | 6 | 10 | 119 | 82 | |
| VC-82HE | SCV-202C82HE-AAFG-B | 12 | 200 | 12 | 20 | 140 | 82 | |
| VC-82HE | SCV-251C82HE-B3 | 12 | 100 | 15 | 25 | 90 | 82 | |
| VC-82HE | SCV-250.8C82HE-AADG-F | 10 | 80 | 15 | 25 | 72 | 82 | |
| VC-85HE | SCVW-252.5C85HE | 12 | 250 | 15 | 25 | 225 | 85 | |
| VD45 | SCV-56.5D45W | 15 | 650 | 3 | 5 | 70 | 45 | |
| VD55 | SCV-315D55WB | 45 | 1500 | 1.8 | 3 | 80 | 55 | |
| VD55 | SCV-115D55W | 45 | 1500 | 0.6 | 1 | 40 | 55 | |
| VD55 | SCV-410D55W | 40 | 1000 | 2.4 | 4 | 80 | 55 | |
| VD55 | SCV-110D55W | 40 | 1000 | 0.6 | 1 | 36 | 55 | |
| VD55 | SCV-85D55W | 35 | 500 | 4.8 | 8 | 80 | 55 | |
| VD55 | SCV-55D55W | 35 | 500 | 3 | 5 | 40 | 55 | |
| VD55 | SCV-154.5D55W | 45 | 450 | 9 | 15 | 80 | 55 | |
| VM-Type1 | SCV-155G | 25 | 500 | 9 | 15 | 90 | 60.4 | |
| VM-Type1 | SCV-152 | 12 | 200 | 9 | 15 | 100 | 60.4 | |
| VM-Type1 | SCV-151 | 10 | 100 | 9 | 15 | 54 | 60.4 | |
| VM-Type1 | SCV-150.5 | 10 | 50 | 9 | 15 | 27 | 60.4 | |
| VM-Type2 | SCV-7.55 | 30 | 500 | 4.5 | 7.5 | 100 | 62.4 | |
| VM-Type2 | SCV-55 | 30 | 500 | 3 | 5 | 100 | 62.4 | |
| VM-Type2 | SCV-152.5 | 30 | 250 | 9 | 15 | 100 | 62.4 | |
| VM-Type3 | SCV-1014G | 90 | 1400 | 6 | 10 | 90 | 73 | |
| VM-Type3 | SCV-514M | 90 | 1400 | 3 | 5 | 100 | 73 | |
| VM-Type3 | SCV-1010G | 50 | 1000 | 6 | 10 | 90 | 73 | |
| VM-Type3 | SCV-510M | 50 | 1000 | 3 | 5 | 100 | 73 | |
| VM-Type3 | SCV-205G | 50 | 500 | 12 | 20 | 90 | 73 | |
| VM-Type3 | SCV-155M | 50 | 500 | 9 | 15 | 100 | 73 | |
| VM-Type4 | SCV-520M | 85 | 2000 | 3 | 5 | 100 | 89 | |
| VM-Type4 | SCV-1010 | 80 | 1000 | 6 | 10 | 100 | 89 | |
| VM-Type4 | SCV-204 | 80 | 450 | 12 | 20 | 100 | 89 | |
| VP110 | SCV-340P110W | 45 | 4000 | 1.8 | 3 | 170 | 110 | |
| VP110 | SCV-820P110W | 40 | 2000 | 4.8 | 8 | 170 | 110 | |
| VP110 | SCV-520P110W | 40 | 2000 | 3 | 5 | 170 | 110 | |
| VP110 | SCV-1015P110W | 40 | 1500 | 6 | 10 | 170 | 110 | |
| VP110 | SCV-2210P110W | 40 | 1000 | 13.2 | 22 | 170 | 110 | |
| VP110 | SCV-1510P110W | 40 | 1000 | 9 | 15 | 170 | 110 | |
| VP110 | SCV-209P110W | 50 | 900 | 12 | 20 | 170 | 110 | |
| VP110 | SCV-255P110 | 40 | 500 | 15 | 25 | 170 | 110 | |
| VP110 | SCV-205P110 | 40 | 500 | 12 | 20 | 170 | 110 | |
| VP110 | SCV-253.5P110 | 35 | 350 | 15 | 25 | 170 | 110 | |
| VP110 | SCV-252.5P110C | 13 | 245 | 15 | 25 | 170 | 110 | |
| VP110 | SCV-202.5P110C | 13 | 245 | 12 | 20 | 170 | 110 | |
| VP110 | SCV-302P110 | 25 | 200 | 18 | 30 | 170 | 110 | |
| VP110 | SCV-251.5P110C | 11 | 150 | 15 | 25 | 135 | 110 | |
| VP110 | SCV-201.5P110C | 11 | 150 | 12 | 20 | 108 | 110 | |
| VP110 | SCV-301P110 | 20 | 100 | 18 | 30 | 108 | 110 | - |
| VP65 | SCV-315P65DW | 10 | 1500 | 1.8 | 3 | 130 | 65 | |
| VP65 | SCV-810P65W | 20 | 1000 | 4.8 | 8 | 130 | 65 | |
| VP65 | SCV-410P65W | 20 | 1000 | 2.4 | 4 | 130 | 65 | |
| VP65 | SCV-310P65FW | 6 | 1000 | 1.8 | 3 | 108 | 65 | |
| VP65 | SCV-7.55P65FW | 6 | 500 | 4.5 | 7.5 | 130 | 65 | |
| VP65 | SCV-152P65C | 5.5 | 200 | 9 | 15 | 108 | 65 | |
| VP70 | SCV-128P70W | 20 | 800 | 7.2 | 12 | 140 | 70 | |
| VP70L | SCV-49.5P70LW | 12 | 950 | 2.4 | 4 | 130 | 70 | |
| VP70L | SCV-85P70LW | 10 | 500 | 4.8 | 8 | 130 | 70 | |
| VP82L | SCV-84P82LW | 15 | 400 | 4.8 | 8 | 115 | 82 | |
| VP94 | SCV-815P94 | 30 | 1500 | 4.8 | 8 | 150 | 94 | |
| VP94L | SCV-271P94L | 14 | 100 | 16.2 | 27 | 97 | 94 | |
| VP115 | SCVW-352.5PC115H | 40 | 350 | 21 | 35 | 205 | 115 | |
| VP115 | SCV-401PB115H-B3 | 14 | 90 | 24 | 40 | 130 | 115 | |
| VP132 | SCV-2015P132W | 60 | 1500 | 12 | 20 | 170 | 132 | |
| VP150 | SCV-1525P150W | 40 | 2500 | 9 | 15 | 300 | 150 | |
| VP150 | SCV-2010P150W | 40 | 1000 | 12 | 20 | 300 | 150 | |
| VP150 | SCV-405P150 | 40 | 500 | 24 | 40 | 300 | 150 | |
| VP150 | SCV-403.5P150 | 20 | 350 | 24 | 40 | 300 | 150 | |
| VP200 | SCV-2020P200 | 1000 | 2000 | 12 | 20 | 400 | 200 | |
| VP200 | SCV-555P200 | 40 | 500 | 33 | 55 | 400 | 200 | |
| VP65 | SCV-510P65W | 20 | 1000 | 3 | 5 | 130 | 65 | |
| VP65 | SCV-105P65FW | 6 | 500 | 6 | 10 | 130 | 65 | |
| VP65 | SCV-202.5P65 | 15 | 250 | 12 | 20 | 130 | 65 | |
| VP65 | SCV-152.5P65 | 15 | 250 | 9 | 15 | 130 | 65 | |
| VP65 | SCV-202P65 | 15 | 200 | 12 | 20 | 130 | 65 | |
| VP65 | SCV-201P65 | 10 | 100 | 12 | 20 | 72 | 65 | |
| VP65 | SCV-151P65 | 10 | 100 | 9 | 15 | 54 | 65 | |
| VP70 | SCV-515P70W | 35 | 1500 | 3 | 5 | 140 | 70 | |
| VP70 | SCV-155P70W | 15 | 1500 | 9 | 15 | 140 | 70 | |
| VP82 | SCV-520P82W | 25 | 2000 | 3 | 5 | 140 | 82 | |
| VP82 | SCV-515P82W | 25 | 1500 | 3 | 5 | 140 | 82 | |
| VC-36LID | SCV-50.5C36LID | 6 | 50 | 3 | 5 | 9 | 36 | |
| VP82 | SCV-1010P82W | 25 | 1000 | 6 | 10 | 140 | 82 | |
| VP82 | SCV-205P82W | 20 | 500 | 12 | 20 | 140 | 82 | |
| VPA82 | SCV-302PA82 | 22 | 200 | 18 | 30 | 170 | 82 | |
| VPA150 | SCV-1525PA150W | 40 | 2500 | 9 | 15 | 300 | 150 | |
| VP82 | SCV-155P82W | 20 | 500 | 9 | 15 | 140 | 82 | |
| VP82 | SCV-252P82 | 20 | 200 | 15 | 25 | 140 | 82 | |
| VP82L | SCV-103.5P82LW | 15 | 350 | 6 | 10 | 126 | 82 | |
| VP82L | SCV-202.2P82L | 12 | 220 | 12 | 20 | 140 | 82 | |
| VP82L | SCV-202P82L | 12 | 200 | 12 | 20 | 140 | 82 | |
| VP82L | SCV-201.5P82L | 12 | 150 | 12 | 20 | 108 | 82 | |
| VP82L | SCV-251P82L | 12 | 100 | 15 | 25 | 90 | 82 | |
| VP82L | SCV-201P82L | 12 | 100 | 12 | 20 | 72 | 82 | |
| VP65 | SCV-125P65DW | 10 | 500 | 7.2 | 12 | 130 | 65 | |
| VP94L | SCV-251P94L | 14 | 100 | 15 | 25 | 90 | 94 | |
| VP82L | SCV-250.8P82L | 11 | 80 | 15 | 25 | 72 | 82 | |
| VP82L | SCV-200.5P82L | 12 | 50 | 12 | 20 | 36 | 82 | |
| VP94 | SCV-523P94W | 45 | 2300 | 3 | 5 | 150 | 94 | |
| VP94 | SCV-520P94W | 30 | 2000 | 3 | 5 | 150 | 94 | |
| VP94 | SCV-158P94DW | 50 | 800 | 9 | 15 | 150 | 94 | |
| VP94 | SCV-205P94 | 25 | 500 | 12 | 20 | 150 | 94 | |
| VP94 | SCV-202.5P94 | 25 | 250 | 12 | 20 | 150 | 94 | |
| VP94L | SCV-153.5P94LW | 15 | 350 | 9 | 15 | 165 | 94 | |
| VP94L | SCV-202.2P94L | 14 | 220 | 12 | 20 | 159 | 94 | |
